제품 상세 정보:
|

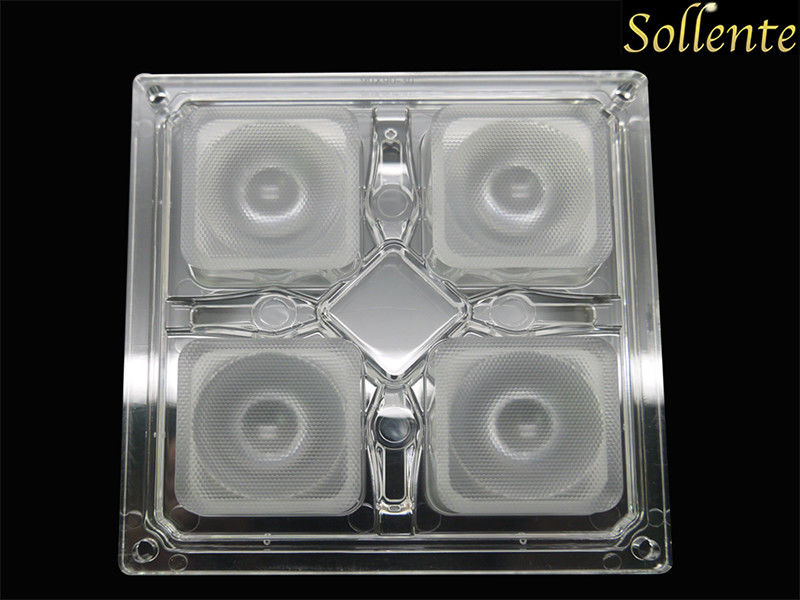

| 상품 이름: | 방수 개스킷, 주도하는 가로등 렌즈 30 도와 1개의 주도하는 렌즈에서 4 | 렌즈 크기: | L90*W90*H9.33MM |
|---|---|---|---|
| 빔 각: | 30° | 지도되는 경기: | SMD3030, SMD5050 |
| 재료: | 광학 등급 PC(UV) | 효율: | 91% |
| 하이 라이트: | 30 도는 가로등 렌즈를 이끌었습니다,SMD5050은 가로등 렌즈를 이끌었습니다,방수 개스킷 SMD 주도하는 렌즈 |
||

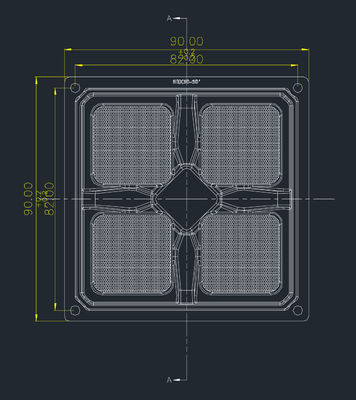

1. Dimension: L90*W90*H9.3mm
2. Beam Angle: 30 degree
3. Match Led: SMD 3030 (4pcs) , Cree XHP70, OSRAM S10, LUXEON M5050, NICHIA NV4W144AM
4. Materials : Optical Grade PC (UV)
5. Accessories: Led lens, Silicone Gasket
6. Efficiency: >91%
| Model | SOE-90X90-30-4H1 | Driver enclosure | plastic or aluminum case for choice |
| Main parts | LED Lens Silicone gasket | PCB Circuit | / |
| Lens Material | PC Optical | LED details | / |
| MOQ | 1pcs | Certificate | ROHS, SGS,CE |
| Lens size | L90*W90*9.3mm | Main market | Europe , South America , North America , Asia |
| PCB Size | / | Payment term | TT, PAYPAL, WESTERN UNION |
NOTE: The typical divergence will be changed by different color, chip size and chip position tolerance. The typical total divergence is the full angle measured where the luminous intensity is half of the peak value.
| MODEL | DEMENTION | LED | BEAM ANGLE |
| SOE-90X90-30-4H1 | L90*W90*H9.3mm | SMD3030/SMD5050 |
30° |
| SOE-90X90-60-4H1 | L90*W90*H9.3mm | SMD3030/SMD5050 | 60° |
| SOE-90X90-90-4H1 | L90*W90*H11.6mm | SMD3030/SMD5050 |
90° |
| SOE-90X90-150-4H1 | L90*W90*H10.7mm | SMD3030/SMD5050 | 150° |
| SOE-90x90-157*80-4H1 | L90*W90*H13.5mm | SMD3030/SMD5050 | 157*80° |
(1)Please use a litter water and soft fabric (air-laid paper) to clean the product if necessary.
(2)Forbid to use industrial solvent to clean the product, such as alcohol.(3)The working temperature is -35oC~+120oC.
(4)Storage environment temperature is 0oC~40oC,humidity is 30%~95%.(5)The product has the function to change the ray of light, it is made of optical material, the effect shall be influenced once pollute. Please do not open the packing before use it,to avoid the dust pollution.
(6)Protect the product from the sun and other ultraviolet ray, as these will lead to aging, change color, crack, etc.
(7)Please ware gloves once install the product, avoid to abrasion the product surface.
(8)Forbid to use acidic or alkaline solution touch the product, avoid to generate the chemical reactions.
